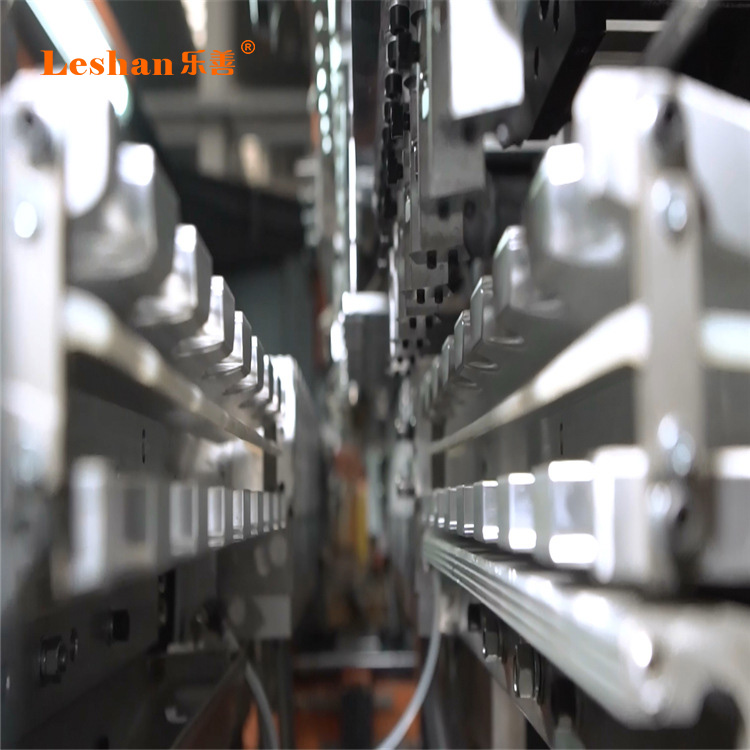

| 类别Caterory | U型机系列(直线导轨）/U Series(Linear Guide Way) | ||||

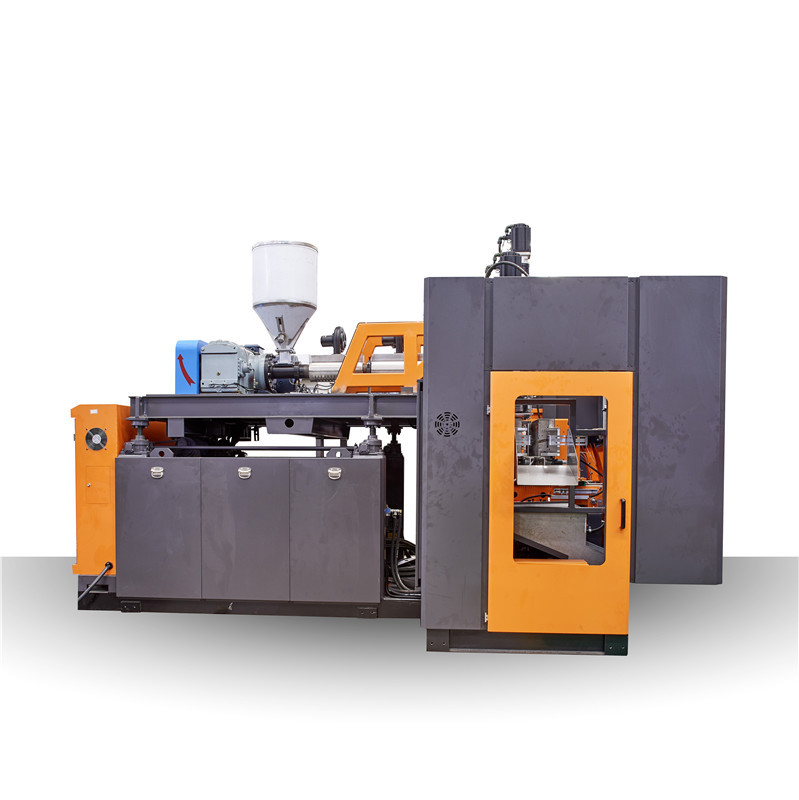

| 机型 | SCJ 65-45U2×1.5F | ||||
| 项目 | Items | 单位 Units | 参数Specification | ||
| 基本参数 Specification |
类别 | Category | / | 双层 2 layers | |

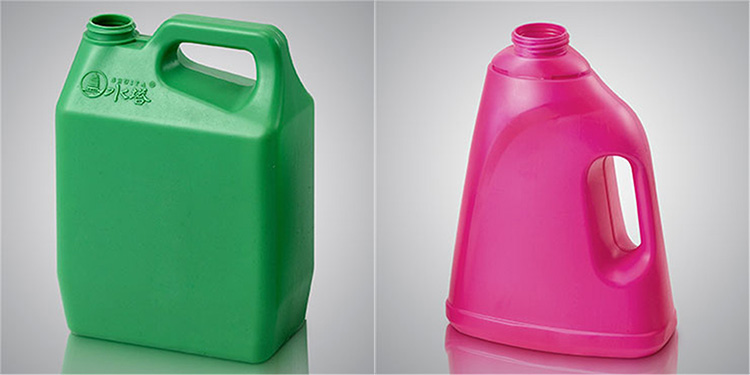

| 制品最大容积 | Max. Blow Volume | L | 5 | ||
| 适用原料 | Material | / | PE,PP | ||
| 模头坯料数量 | Qty.Of Die Head | / | 1 | ||
| 常用模头中心距 | Die Head Distance (Center to Center) | mm | / | ||
| 机器净重约 | Net Weight | kg | 8000 | ||
| 机器外形尺寸 | Machine Dimension | mm，L×H×W | 4400X2450X3600(2150) | ||
| 模头 Die Head |
模头加热段数 | Die Head Heating Zone | / | 3 | |
| 模头加热功率 | Die Head Heating Power | kW | 6.5 | ||
| 锁模架系统 Carriage system |
模架数量 | Qty.Of Station | / | 2 | |

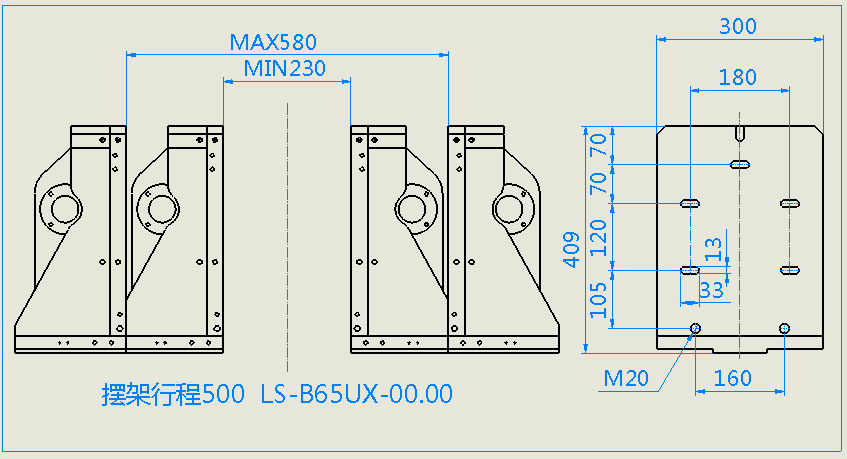

| 最小合模距 | Min Clamping Distance Of Mold | mm | 230 | ||
| 最大开模距 | Max Clamping Distance Of Mold | mm | 580 | ||
| 模板尺寸 | Effective Dimension Of Mold Plate | mm W×H | 300×400 | ||
| 摆架行程 | Carriage Stroke | (mm) | 500 | ||
| 锁模力 | Clamping Force | kN | 80 | ||
| 挤出系统 Extruder Unit |
螺杆直径 | Extruder Diameter | mm | 65 | 45 |
| 螺杆长径比 | Extruder Length/Diameter Ratio | L/D | 24 | 21 | |
| 螺杆转速 | Extruder Rotating Speed | r/min | 20-67 | 20-40 | |
| 最大塑化能力 | Max Extrusion Capacity | kg/h | 60 | 14 | |
| 挤出电机额定功率 | Extruder Motor Rated Power | kW | 15 | 5.5 | |
| 机筒加热段数 | Barrel Heating Zone | / | 3 | 3 | |
| 机筒加热功率 | Barrel Heating Power | kW | 7 | 4.5 | |
| 冷却风机功率 | Cooling Fan Power | kW | 0.12 | 0.04 | |
| 动力系统 Power Unit |
油泵电机额定功率 | Oil Pump Motor Rated Power | kW | 7.5 | |
| 液压系统额定工作压力 | Hydraulic System Rated Working Pressure | Mpa | 16 | ||
| 气动系统额定工作压力 | Pneumatic System Rated Working Pressure | Mpa | 0.8 | ||
| 水冷系统额定工作压力 | Cooling System Rated Working Pressure | Mpa | 0.4 | ||
| 通用制品耗气量（压缩后） | Universal product air consumption(compressed) | m³/h | 13 | ||
| 热切刀变压器功率 | Hot Cutter Power | kW | 2 | ||
| 装机总功率I | Total Installed Power I | kW | 48.16 | ||
| 备注 Remarks |
液压油牌号/油箱容积 | Hydraulic oil NO. / tank volume | L | 46#/200 | |
| 冷水机选型（风冷/水冷） | Chiller recommend (air-cooled/water-cooled) | hp | 10/8 | ||
| 空压机选型（加储气罐） | Air compressor recommend (Add gas storage tank) | hp | 10 | ||
| 备注/Remarks： | 以上机型均可叠加100点壁厚控制系统，叠加后改变的参数如下/All the machines above can be optionally equipped with 100 points parison control system,parameters would be changed as below: | ||||
| 叠加壁厚控制后 After with 100 points parison control |
机型 | Model | / | SCJ 65-45U+S2×1.5F | |
| 壁厚油泵电机额定功率 | Parison Motor Rated Power | kW | 5.5 | ||
| 装机总功率II | Total Installed Power II | kW | 53.66 | ||
| 模板尺寸 | Effective Dimension Of Mold Plate | (mm) | |||
 |
|||||
| 备注： 1、各机型加热功率与模头配置有关，因模头配置不同，可能出现加热功率稍有差异的情况 2、本参数表仅供参考，实际机型参数可能会有所调整 |
|||||
| Note: 1. The heating power of each model is related to the configuration of the die head. Due to the different configuration of the die head, there may be a slight difference in heating power. 2. This parameter list is for reference only, and the actual model parameters may be adjusted. |
|||||
